Industrial Arduino Barcode Scanner Module Infrared Sensor Fast Decoding LV1000R

Shenzhen Rakinda Technology Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

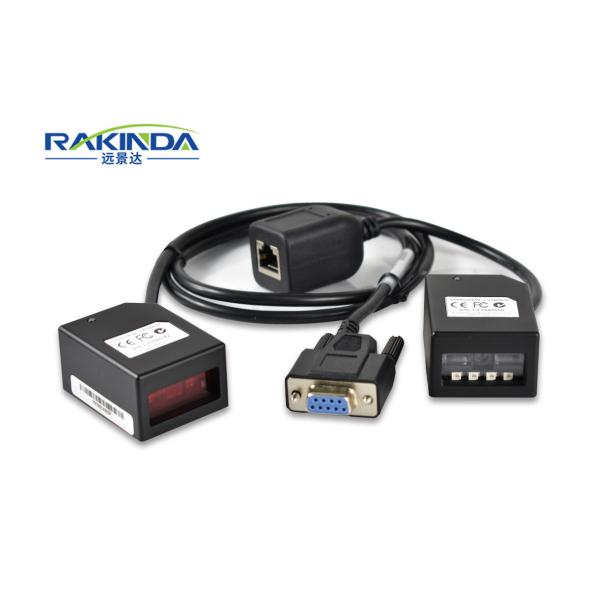

Industrial Arduino Barcode Scanner Module Infrared Sensor Fast Decoding LV1000R

Brand Name : RAKINDA
Model Number : LV1000R
Certification : CE, RoHS
Place of Origin : Shenzhen, Guangdong, China
MOQ : 1 pcs
Price : Negotiation
Payment Terms : Western Union, T/T, paypal
Supply Ability : 1000 PCS/ week
Delivery Time : within 5 working days after receiving the balance
Packaging Details : barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
Product name : Barcode Reader Module
Type : Industrial 1D USB Scanner
Optical Resolution : 2500
Color : Black
Weight : 70g
Port : Shenzhen
Delivery time : within 5 working days after receiving the balance
Trade term : FOB, CIF and others we can negotiate
Contact Now

Industrial Arduino Barcode Scanner Module Infrared Sensor Fast Decoding LV1000R​


1. Compact, easy to be embedded, Fixed mount design for use.

2. USB or RS232 interface directly, no need to pay much time on system integration program.

3. With Infrared sensor, more accurate and durable.

4. Support all of 1D code decoding.

5. With high performance processing chip inside, Readable either from LCD screen or from paper.

6. Easy to be programmed, simply scan setting bar codes.

Wherever a small footprint is required, the Symbol LV1000R 1d barcode reader module delivers. One of the high quality CCD imaging products available today, this scanner excels at 1D bar code scanning, image capture. Attaining a new level of miniaturization, it can be used from the check-in kiosk to point-of-sale areas with limited counter space or even integrated within clinical diagnostic equipment.

The clear aiming pattern enables users to visually see the area that is to be captured, ensuring first time every time accurate capture. And an audible tone and visible LED light, let users know that the data capture is accurate- and complete.

Technical Specifications of LV1000R 1D USB Scanner

Product nameCCD Scan Engine
Item numberLV1000R
InterfaceRS232/ USB
Image SensorCCD
SymbologiesCode128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar, Interleaved 2 of 5,ISBN/ISSN,Code 93, UCC/EAN-128, GS1Databar, etc.
Precision≥ 5mil (Condition: PCS=0.9, testing code: Code 39)
Light SourceLED(622 nm - 628 nm)
Light Intensity265 LUX (130 mm )
Depth of Field*40mm-430mm
Print Contrast Signal≥ 30%

Pitch: ±65°@ 0°Roll and 0° Skew

Roll: ±30°@ 0°Pitch and 0° Skew

Skew: ±60°@ 0°Roll and 0° Pitch

Illumination0 ~ 100,000 LUX
Power Consumption1.25W

Working: 170mA

Idle: 65mA

Max: 250mA

Operating Temperature-5 ℃ to + 45 ℃
Storage Temperature-40 ℃ to + 60 ℃
Humidity5% - 95% ( non-condensing )
CertificationFCC Part15 Class B, CE EMC Class B

Barcode Scanner FAQ

Q1: Can I get some samples? are they free?

A1: Of course, but samples are not free.

Q2: What's the delivery time?

A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.

Q3: What about payment?

A3: Payment terms: T/T,West Union and L/C etc.

Q4: Can you list the product of your company?

A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.

Q5: What's the OS of the POS?

A5: Android and Windows,details please refer to the technical data of the Product.

Q6: Where can we download the SDK/user manual for some of your products?

A6: SDK/User manual will be sent to you by email after the sample order.

Q7: Warranty time?

A7: 1 year

Q8: Do you provide Evaluation Kit for testing barcode scanner module?

A8: Yes, but you need to pay for EVK separately.

Q9: Product OEM?

A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.

Q10: Customer service?

A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
